How to integrate Gmail MCP with Claude Code

Manage your Gmail directly from Claude Code with zero worries about OAuth hassles, API-breaking issues, or reliability and security concerns. You can do this in two different ways: Via Composio Connect - Direct and easiest approach Via Composio SDK - Programmatic approach with more control

Gmail logoGmail
Oauth2

Gmail is Google's email service with powerful spam protection, search, and G Suite integration. It keeps your inbox organized and makes communication fast and reliable.

61 Tools2 Triggers

Introduction

Manage your Gmail directly from Claude Code with zero worries about OAuth hassles, API-breaking issues, or reliability and security concerns.

You can do this in two different ways:

  1. Via Composio Connect - Direct and easiest approach
  2. Via Composio SDK - Programmatic approach with more control

Also integrate Gmail with

Why use Composio?

  • Only one MCP URL to connect multiple apps with Claude Code with zero auth hassles.
  • Programmatic tool calling allows LLMs to write its code in a remote workbench to handle complex tool chaining. Reduces to-and-fro with LLMs for frequent tool calling.
  • Handling Large tool responses out of LLM context to minimize context rot.
  • Dynamic just-in-time access to 20,000 tools across 1000+ other Apps for cross-app workflows. It loads the tools you need, so LLMs aren't overwhelmed by tools you don't need.

Connecting Gmail to Claude Code using Composio

1. Add the Composio MCP to Claude

Terminal

2. Start Claude Code

bash
claude

3. Open your MCP list

bash
/mcp

4. Select Composio and click on Authenticate

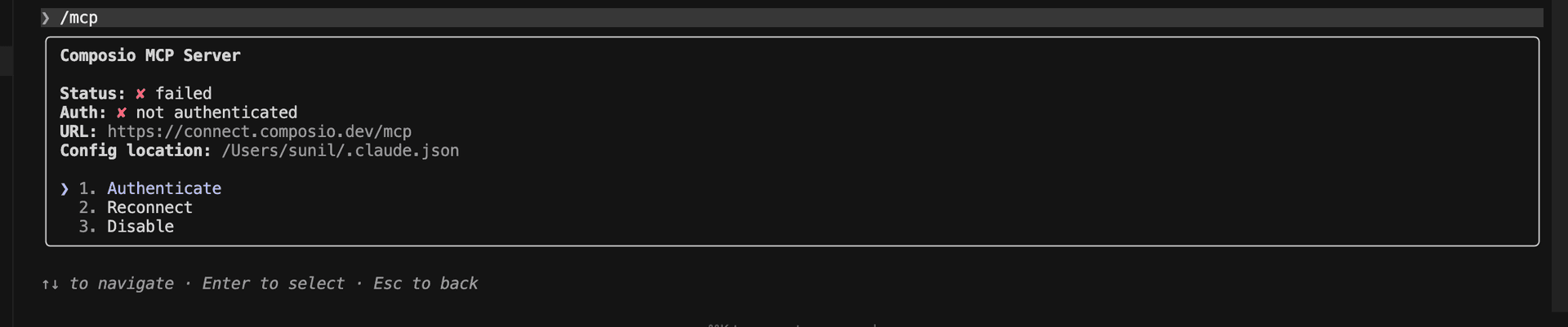

Select Composio and click Authenticate

5. This will redirect you to the Composio OAuth page. Complete the flow by authorizing Composio and you're all set.

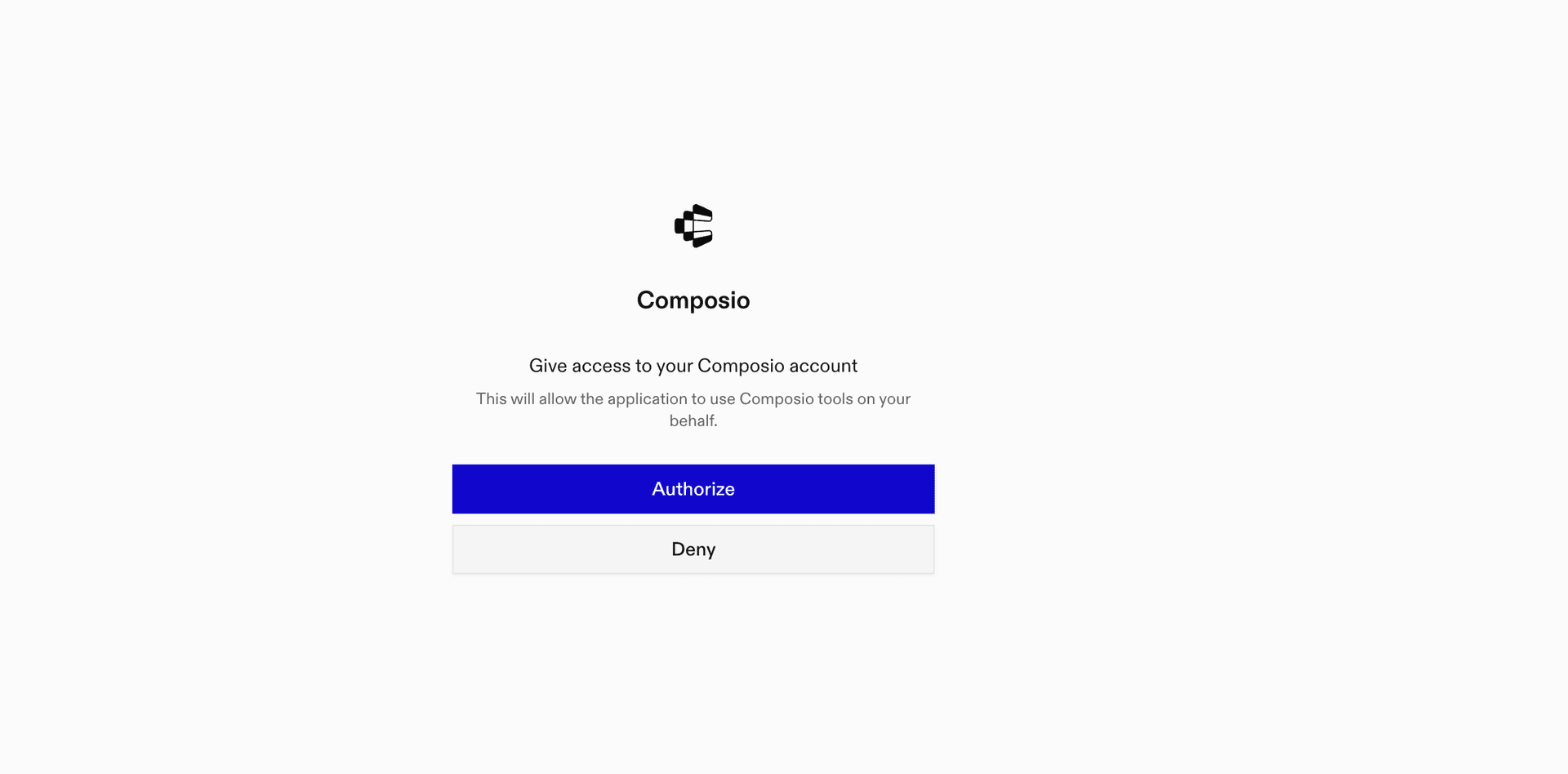

Composio OAuth authorization page
Composio authorization complete
Ask Claude to connect to your account and authenticate via the link

What is the Gmail MCP server, and what's possible with it?

The Gmail MCP server is an implementation of the Model Context Protocol that connects your AI agent and assistants like Claude, Cursor, etc directly to your Gmail account. It provides structured and secure access to your email, so your agent can search, read, draft, organize, and even manage contacts in your mailbox—all on your behalf.

  • Advanced email search and retrieval: Effortlessly instruct your agent to fetch emails by sender, subject, label, date, or keywords, and even retrieve full message content or threads.
  • Automated drafting and sending: Have your agent create new email drafts, craft replies, add CC/BCC, include attachments, and handle threading to streamline communication.
  • Smart label and inbox organization: Let the agent create new labels, apply or remove labels from emails, and keep your inbox clutter-free by archiving or moving messages.
  • Contact and thread management: Fetch your Gmail contacts, pull entire conversation threads, or download specific attachments to make follow-ups a breeze.
  • Email and draft cleanup: Direct your agent to permanently delete emails or drafts, helping you maintain a tidy mailbox with minimal effort.

Connecting Gmail via Composio SDK

Composio SDK is the underlying tech that powers Rube. It's a universal gateway that does everything Rube does but with much more programmatic control. You can programmatically generate an MCP URL with the app you need (here Gmail) for even more tool search precision. It's secure and reliable.

How the Composio SDK works

The Composio SDK follows a three-phase workflow:

  1. Discovery: Searches for tools matching your task and returns relevant toolkits with their details.
  2. Authentication: Checks for active connections. If missing, creates an auth config and returns a connection URL via Auth Link.
  3. Execution: Executes the action using the authenticated connection.

Step-by-step Guide

Step by step10 STEPS
1

Prerequisites

Before starting, make sure you have:
  • Claude Pro, Max, or API billing enabled Anthropic account
  • Composio API Key
  • A Gmail account
  • Basic knowledge of Python or TypeScript
2

Install Claude Code

bash
# macOS, Linux, WSL
curl -fsSL https://claude.ai/install.sh | bash

# Windows PowerShell
irm https://claude.ai/install.ps1 | iex

# Windows CMD
curl -fsSL https://claude.ai/install.cmd -o install.cmd && install.cmd && del install.cmd

To install Claude Code, use one of the following methods based on your operating system:

3

Set up Claude Code

bash
cd your-project-folder
claude

Open a terminal, go to your project folder, and start Claude Code:

  • Claude Code will open in your terminal
  • Follow the prompts to sign in with your Anthropic account
  • Complete the authentication flow
  • Once authenticated, you can start using Claude Code

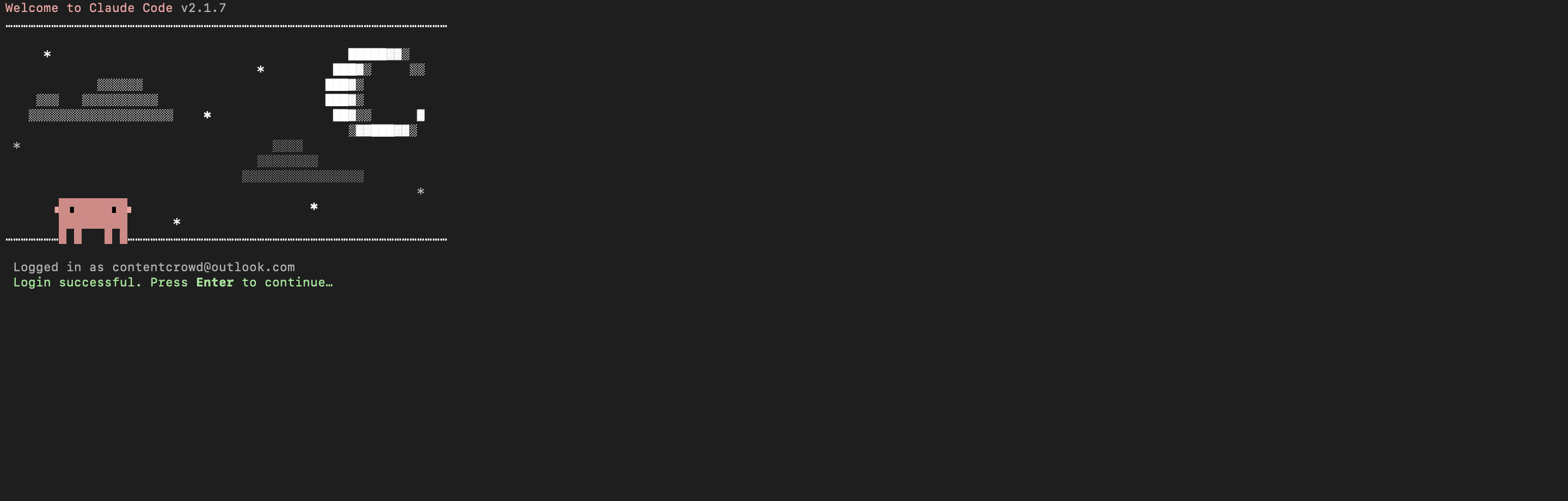

Claude Code initial setup showing sign-in prompt

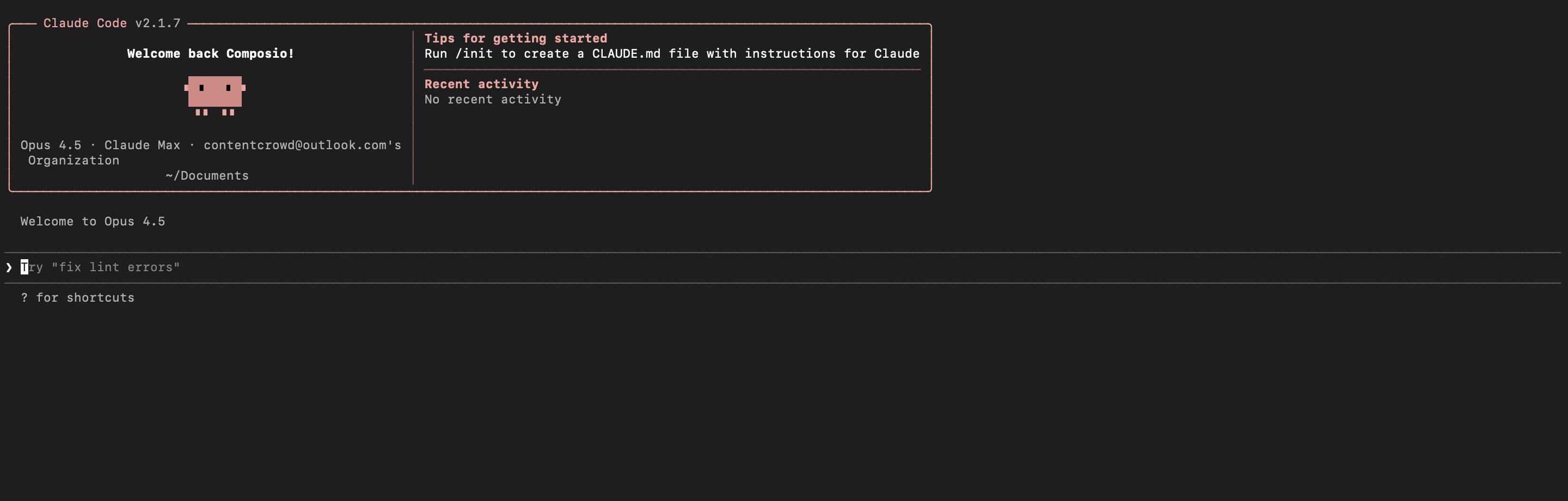

Claude Code terminal after successful login
4

Set up environment variables

bash
COMPOSIO_API_KEY=your_composio_api_key_here
USER_ID=your_user_id_here

Create a .env file in your project root with the following variables:

  • COMPOSIO_API_KEY authenticates with Composio (get it from Composio dashboard)
  • USER_ID identifies the user for session management (use any unique identifier)
5

Install Composio library

npm install @composio/core dotenv

Install the Composio TypeScript library to create MCP sessions.

  • @composio/core provides the core Composio functionality
  • dotenv loads environment variables from your .env file
6

Generate Composio MCP URL

import 'dotenv/config';
import { Composio } from '@composio/core';

const { COMPOSIO_API_KEY, USER_ID } = process.env;

if (!COMPOSIO_API_KEY || !USER_ID) {
  throw new Error('COMPOSIO_API_KEY and USER_ID required in .env');
}

const composioClient = new Composio({ apiKey: COMPOSIO_API_KEY });

const composioSession = await composioClient.create(USER_ID, {
  toolkits: ['gmail'],
});

const composioMcpUrl = composioSession?.mcp.url;

console.log(`MCP URL: ${composioMcpUrl}`);
console.log(`\nUse this command to add to Claude Code:`);
console.log(`claude mcp add --transport http gmail-composio "${composioMcpUrl}" --headers "X-API-Key:${COMPOSIO_API_KEY}"`);

Create a script to generate a Composio MCP URL for Gmail. This URL will be used to connect Claude Code to Gmail.

What's happening

  • We import the Composio client and load environment variables
  • Create a Composio instance with your API key
  • Call create() to create a Tool Router session for Gmail
  • The returned mcp.url is the MCP server URL that Claude Code will use
  • The script prints this URL so you can copy it
7

Run the script and copy the MCP URL

node --loader ts-node/esm generate_mcp_url.ts
# or if using tsx
tsx generate_mcp_url.ts

Run your TypeScript script to generate the MCP URL.

  • The script connects to Composio and creates a Tool Router session
  • It prints the MCP URL and the exact command you need to run
  • Copy the entire claude mcp add command from the output
8

Add Gmail MCP to Claude Code

bash
claude mcp add --transport http gmail-composio "YOUR_MCP_URL_HERE" --headers "X-API-Key:YOUR_COMPOSIO_API_KEY"

# Then restart Claude Code
exit
claude

In your terminal, add the MCP server using the command from the previous step. The command format is:

  • claude mcp add registers a new MCP server with Claude Code
  • --transport http specifies that this is an HTTP-based MCP server
  • The server name (gmail-composio) is how you'll reference it
  • The URL points to your Composio Tool Router session
  • --headers includes your Composio API key for authentication

After running the command, close the current Claude Code session and start a new one for the changes to take effect.

9

Verify the installation

bash
claude mcp list

Check that your Gmail MCP server is properly configured.

  • This command lists all MCP servers registered with Claude Code
  • You should see your gmail-composio entry in the list
  • This confirms that Claude Code can now access Gmail tools

If everything is wired up, you should see your gmail-composio entry listed:

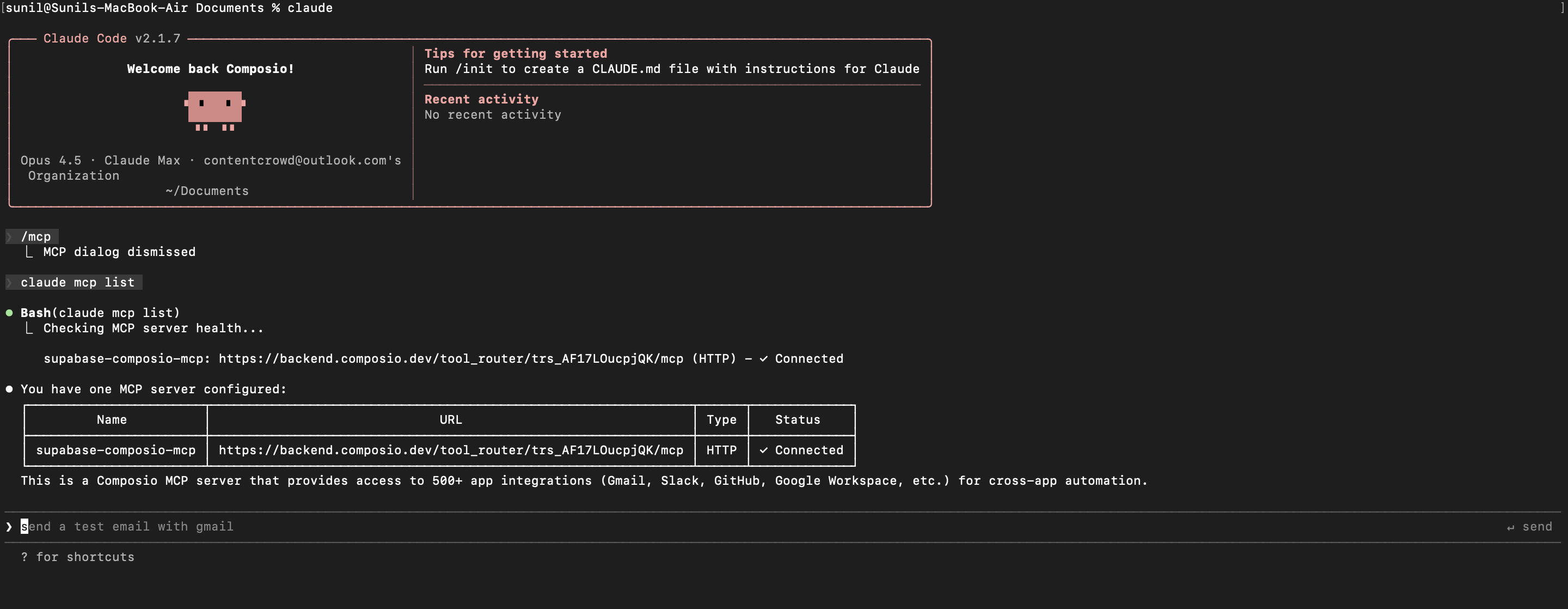

Claude Code MCP list showing the toolkit MCP server
10

Authenticate Gmail

The first time you try to use Gmail tools, you'll be prompted to authenticate.

  • Claude Code will detect that you need to authenticate with Gmail
  • It will show you an authentication link
  • Open the link in your browser (or copy/paste it)
  • Complete the Gmail authorization flow
  • Return to the terminal and start using Gmail through Claude Code

Once authenticated, you can ask Claude Code to perform Gmail operations in natural language. For example:

  • "Summarize unread emails from this morning"
  • "Create draft replies to urgent messages"
  • "Fetch contact details for recent senders"

Complete Code

Here's the complete code to get you started with Gmail and Claude Code:

import 'dotenv/config';
import { Composio } from '@composio/core';

const { COMPOSIO_API_KEY, USER_ID } = process.env;

if (!COMPOSIO_API_KEY || !USER_ID) {
  throw new Error('COMPOSIO_API_KEY and USER_ID required in .env');
}

const composioClient = new Composio({ apiKey: COMPOSIO_API_KEY });

const composioSession = await composioClient.create(USER_ID, {
  toolkits: ['gmail'],
});

const composioMcpUrl = composioSession?.mcp.url;

console.log(`MCP URL: ${composioMcpUrl}`);
console.log(`\nUse this command to add to Claude Code:`);
console.log(`claude mcp add --transport http gmail-composio "${composioMcpUrl}" --headers "X-API-Key:${COMPOSIO_API_KEY}"`);

Conclusion

You've successfully integrated Gmail with Claude Code using Composio's MCP server. Now you can interact with Gmail directly from your terminal using natural language commands.

Key features of this setup:

  • Terminal-native experience without switching contexts
  • Natural language commands for Gmail operations
  • Secure authentication through Composio's managed MCP
  • Tool Router for dynamic tool discovery and execution

Next steps:

  • Try asking Claude Code to perform various Gmail operations
  • Add more toolkits to your Tool Router session for multi-app workflows
  • Integrate this setup into your development workflow for increased productivity

You can extend this by adding more toolkits, implementing custom workflows, or building automation scripts that leverage Claude Code's capabilities.

TOOLS & TRIGGERS

Supported Tools and Triggers

Every Gmail action and event your agent gets out of the box.

Modify email labels

Adds and/or removes specified Gmail labels for a message; ensure `message_id` and all `label_ids` are valid (use 'listLabels' for custom label IDs).

Batch delete Gmail messages

Tool to permanently delete multiple Gmail messages in bulk, bypassing Trash with no recovery possible.

Batch modify Gmail messages

Modify labels on multiple Gmail messages in one efficient API call.

Create email draft

Creates a Gmail email draft.

Create Gmail filter

Tool to create a new Gmail filter with specified criteria and actions.

Create label

Creates a new label with a unique name in the specified user's Gmail account.

Create Prompt Post

Send a one-shot prompt to the Sanity Content Agent.

Delete Draft

Permanently deletes a specific Gmail draft using its ID with no recovery possible; verify the correct `draft_id` and obtain explicit user confirmation before calling.

Delete Gmail filter

Tool to permanently delete a Gmail filter by its ID.

Delete label from account (permanent)

Permanently DELETES a user-created Gmail label from the account (not from a message).

Delete message

Permanently deletes a specific email message by its ID from a Gmail mailbox; for `user_id`, use 'me' for the authenticated user or an email address to which the authenticated user has delegated access.

Delete thread

Tool to immediately and permanently delete a specified thread and all its messages.

Fetch emails

Fetches a list of email messages from a Gmail account, supporting filtering, pagination, and optional full content retrieval.

Fetch message by message ID

Fetches a specific email message by its ID, provided the `message_id` exists and is accessible to the authenticated `user_id`.

Fetch Message by Thread ID

Retrieves messages from a Gmail thread using its `thread_id`, where the thread must be accessible by the specified `user_id`.

Forward email message

Forward an existing Gmail message to specified recipients, preserving original body and attachments.

Get Gmail attachment

Retrieves a specific attachment by ID from a message in a user's Gmail mailbox, requiring valid message and attachment IDs.

Get Auto-Forwarding Settings

Tool to get the auto-forwarding setting for the specified account.

Get contacts

Fetches contacts (connections) for the authenticated Google account, allowing selection of specific data fields and pagination.

Get Draft

Retrieves a single Gmail draft by its ID.

Get Gmail filter

Tool to retrieve a specific Gmail filter by its ID.

Get label details

Gets details for a specified Gmail label.

Get Language Settings

Tool to retrieve the language settings for a Gmail user.

Get People

Retrieves either a specific person's details (using `resource_name`) or lists 'Other Contacts' (if `other_contacts` is true), with `person_fields` specifying the data to return.

Get Profile

Retrieves Gmail profile information (email address, aggregate messagesTotal/threadsTotal, historyId) for a user.

Get Vacation Settings

Tool to retrieve vacation responder settings for a Gmail user.

Import message

Tool to import a message into the user's mailbox with standard email delivery scanning and classification.

Insert message into mailbox

Tool to insert a message into the user's mailbox similar to IMAP APPEND.

List CSE identities

Tool to list client-side encrypted identities for an authenticated user.

List CSE key pairs

Tool to list client-side encryption key pairs for an authenticated user.

List Drafts

Retrieves a paginated list of email drafts from a user's Gmail account.

List Gmail filters

Tool to list all Gmail filters (rules) in the mailbox.

List forwarding addresses

Tool to list all forwarding addresses for the specified Gmail account.

List Gmail history

Tool to list Gmail mailbox change history since a known startHistoryId.

List Gmail labels

Retrieves all system and user-created labels for a Gmail account in a single unpaginated response.

List send-as aliases

Lists the send-as aliases for a Gmail account, including the primary address and custom 'from' aliases.

List S/MIME configs

Lists S/MIME configs for the specified send-as alias.

List threads

Retrieves a list of email threads from a Gmail account, identified by `user_id` (email address or 'me'), supporting filtering and pagination.

Modify thread labels

Adds or removes specified existing label IDs from a Gmail thread, affecting all its messages; ensure the thread ID is valid.

Trash thread

Moves the specified thread to the trash.

Move to Trash

Moves an existing, non-deleted email message to the trash for the specified user.

Patch Label

Patches the specified user-created label.

Patch send-as alias

Tool to patch the specified send-as alias for a Gmail user.

Reply to email thread

Sends a reply within a specific Gmail thread using the original thread's subject; do not provide a custom subject as it will start a new conversation instead of replying in-thread.

Search People

Searches contacts by matching the query against names, nicknames, emails, phone numbers, and organizations, optionally including 'Other Contacts'.

Send Draft

Sends an existing draft email AS-IS to recipients already defined within the draft.

Send Email

Sends an email via Gmail API using the authenticated user's Google profile display name.

Get IMAP Settings

Retrieves the IMAP settings for a Gmail user account, including whether IMAP is enabled, auto-expunge behavior, expunge behavior, and maximum folder size.

Get POP settings

Tool to retrieve POP settings for a Gmail account.

Get send-as alias

Tool to retrieve a specific send-as alias configuration for a Gmail user.

Stop watch notifications

Tool to stop receiving push notifications for a Gmail mailbox.

Untrash Message

Tool to remove a message from trash in Gmail.

Untrash thread

Tool to remove a thread from trash in Gmail.

Update draft

Updates (replaces) an existing Gmail draft's content in-place by draft ID.

Update IMAP settings

Tool to update IMAP settings for a Gmail account.

Update Label

Tool to update the properties of an existing Gmail label.

Update Language Settings

Tool to update the language settings for a Gmail user.

Update POP settings

Tool to update POP settings for a Gmail account.

Update send-as alias

Tool to update a send-as alias for a Gmail user.

Update User Attributes Values

Update user attribute values for a resource.

Update Vacation Settings

Tool to update vacation responder settings for a Gmail user.

FAQ

Frequently asked questions

With a standalone Gmail MCP server, the agents and LLMs can only access a fixed set of Gmail tools tied to that server. However, with the Composio Tool Router, agents can dynamically load tools from Gmail and many other apps based on the task at hand, all through a single MCP endpoint.

Yes, you can. Claude Code fully supports MCP integration. You get structured tool calling, message history handling, and model orchestration while Tool Router takes care of discovering and serving the right Gmail tools.

Yes, absolutely. You can configure which Gmail scopes and actions are allowed when connecting your account to Composio. You can also bring your own OAuth credentials or API configuration so you keep full control over what the agent can do.

All sensitive data such as tokens, keys, and configuration is fully encrypted at rest and in transit. Composio is SOC 2 Type 2 compliant and follows strict security practices so your Gmail data and credentials are handled as safely as possible.

Start with Gmail.It takes 30 seconds.

Managed auth, hosted MCP servers, and every Gmail tool your agent needs.Free to start.

Start building
